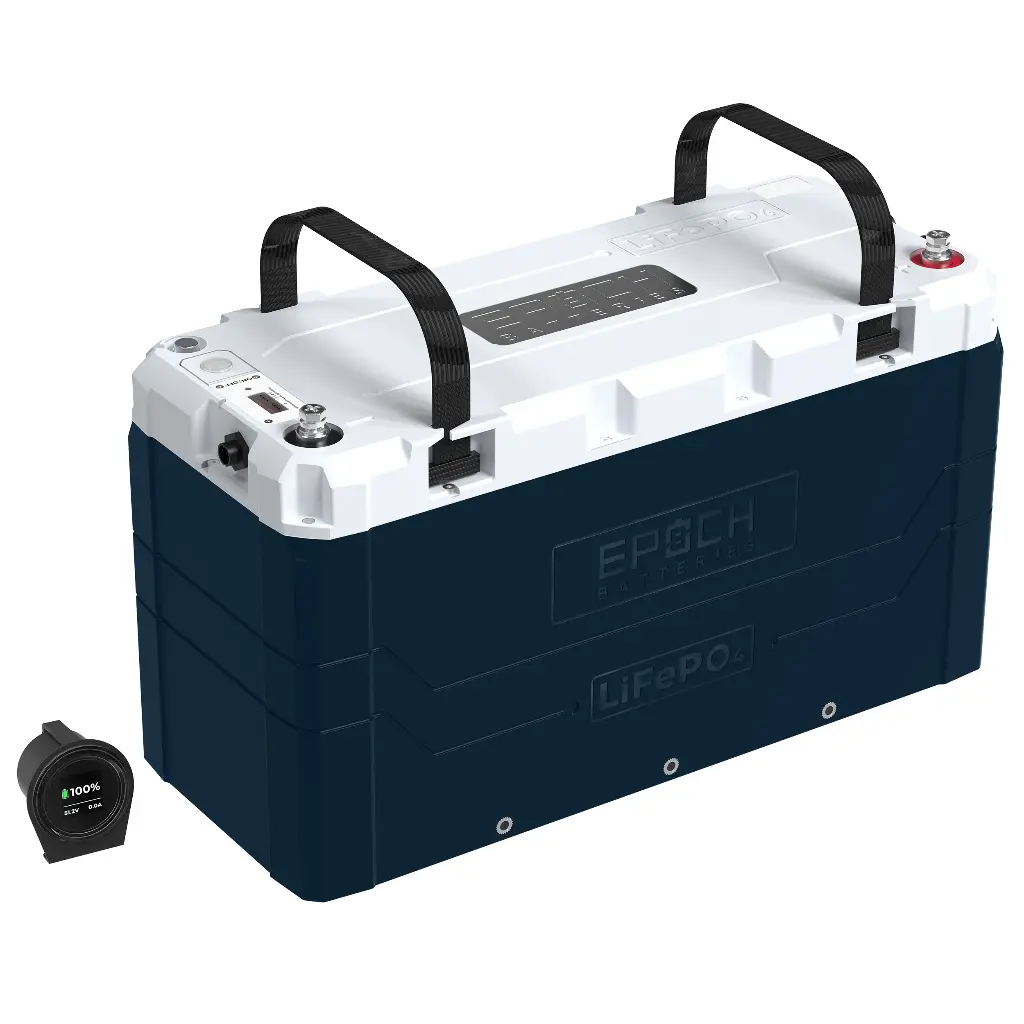

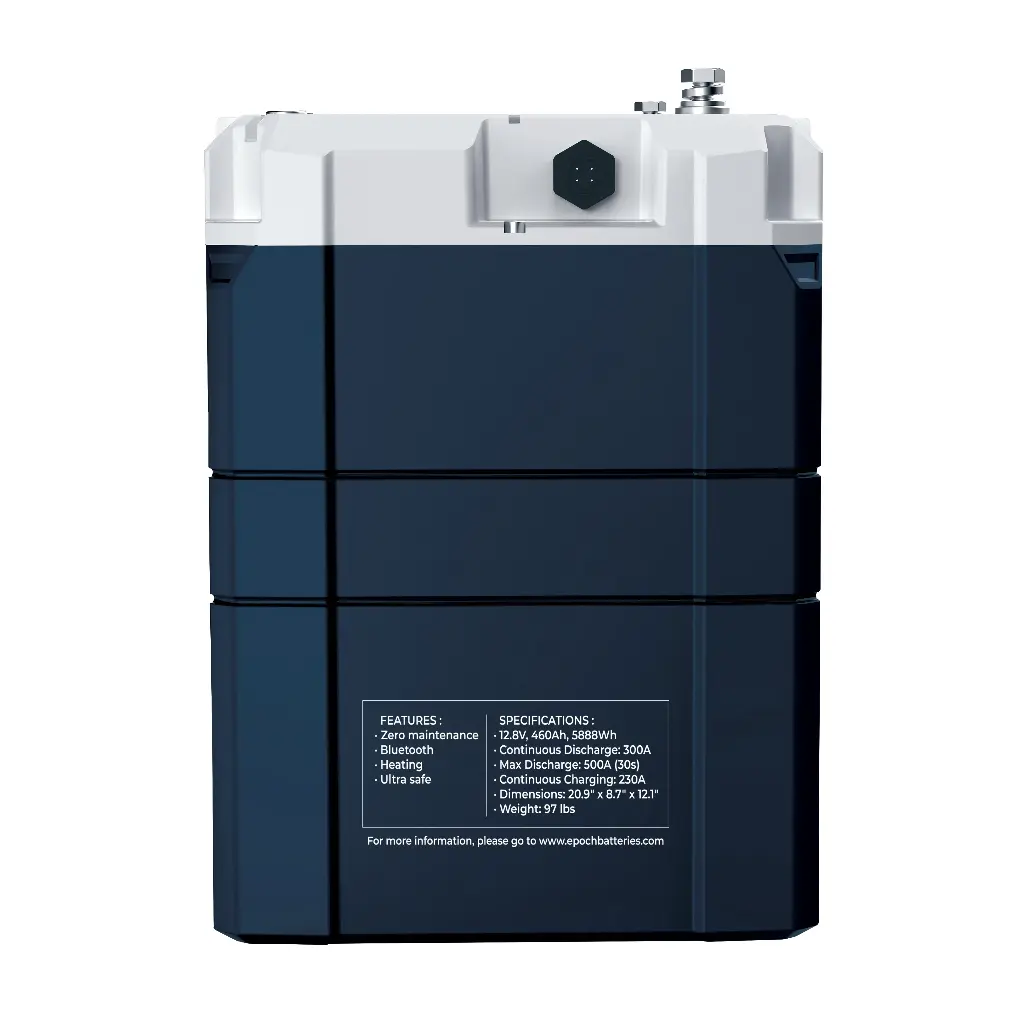

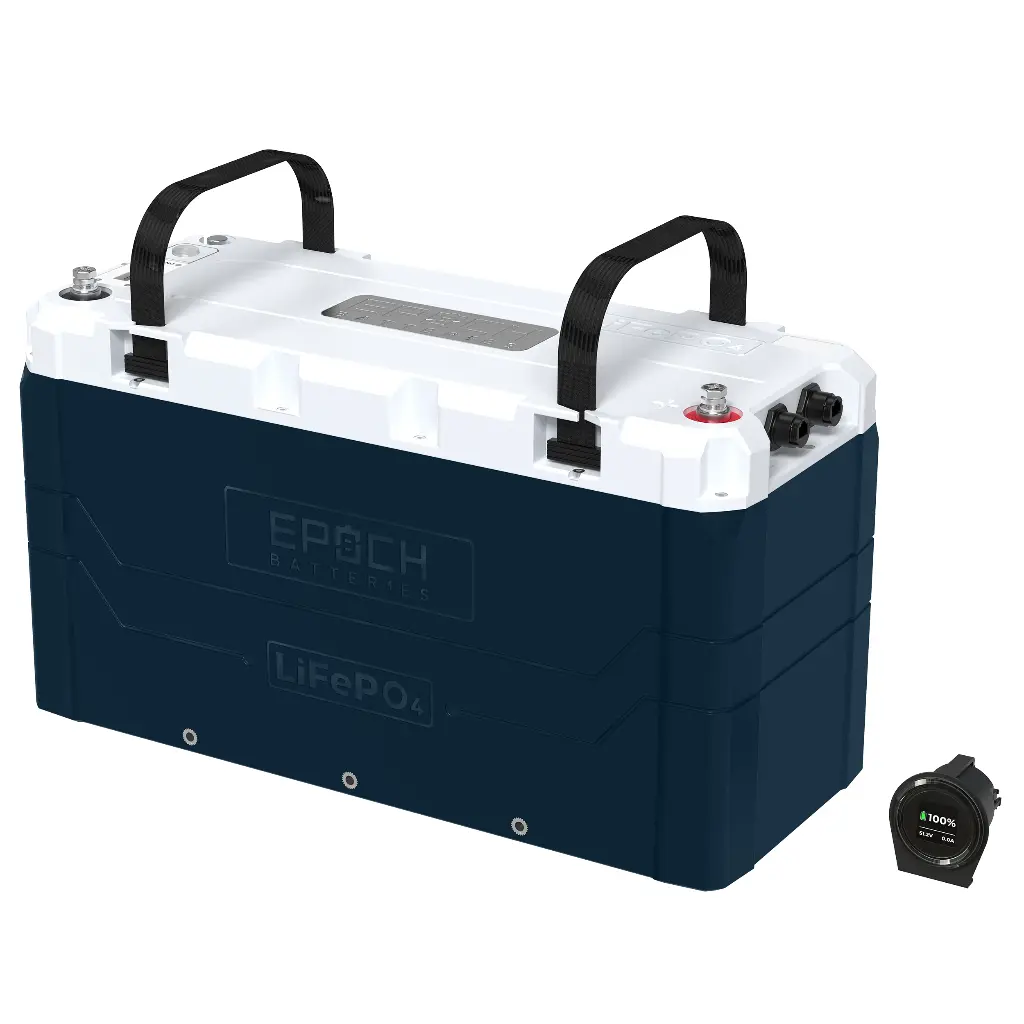

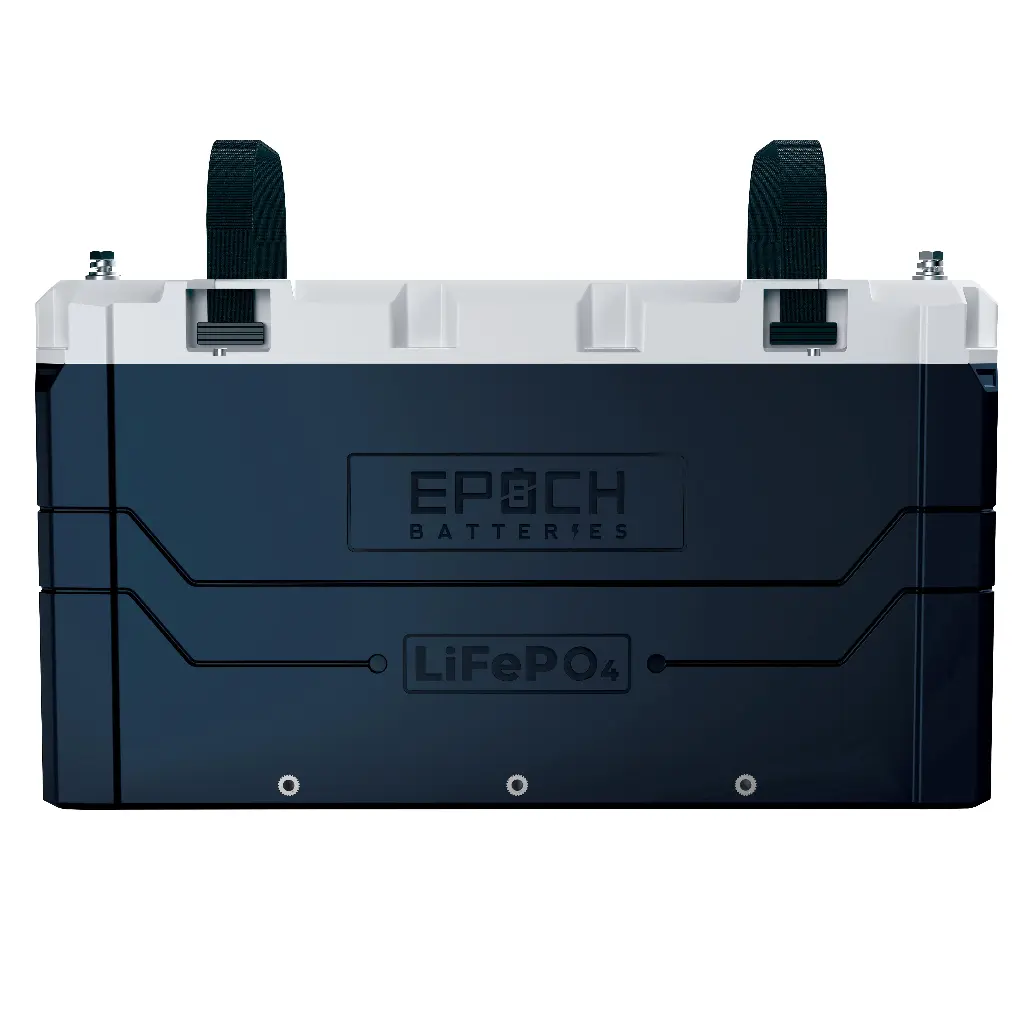

Epoch LiFePO4 Battery 12V 460Ah V2 Elite Series

SKU:C12460A

Description:

• LiFePO4 Chemistry
• UL60691 Certified Internal Fuse
• UL1642, UL1973, U9540A Certified Cells
• IEC 62619:2017, RoHS, CE Certified Cells
• Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
• 460Ah Capacity
• 230A Max Continuous Discharge (500A 30s Discharge)
• 230A Max Continuous Charge (400A 5s Charge)
• IP67 Rated, Dust and WATERPROOF
• HEATED - Internal heating for below 0C charging
• BLUETOOTH - iOS and Android Apps
• VICTRON Communications - Parallel up to 16 together on 1 system
• External Power Button & Battery Gauge INCLUDED
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Weights & Dimensions

Weight: 97 (LBS)

Length: 20.75 (inches)

Width: 8.5 (inches)

Height: 12 (inches)

Specifications

Configuration

Cell Configuration: 4S2P

Chemistry: LiFePO4

Current

Ah Capacity: 460Ah

Max Continuous Discharge Amps: 230A

Max Charge Current Amps: 230A

Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)

Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

Voltage

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

• Improved Victron Communications: This update refines the handling of high voltage alarms in the V2 model to ensure accurate performance. Improved communication enhances the monitoring and control of the battery system for greater reliability.
• Improved Scalability: Parallel Capability: The system can now handle up to 16 batteries in parallel, compared to the previous limitation of just 4. This greatly expands the potential for energy storage, allowing for larger systems.
• Upgraded Internal Components: Certified Components: The internal fuse is UL60691 certified, and the battery cells meet a range of safety and quality standards, including UL1642, UL1973, U9540A, IEC 62619:2017, and RoHS. This indicates that the battery is built to high safety standards and is suitable for various applications.
• Battery UL Listing: The battery is in the process of receiving its UL Listing (a certification for safety and quality). This will further confirm its compliance with industry standards.
• Improved Bluetooth App Compatibility: All-Battery Dashboard: The app now supports connecting to and monitoring all batteries from a single dashboard, even if you have up to 16 batteries in your system. This makes it easier to manage large-scale installations.
• BMS Over-the-Air Firmware Updates: The system can now receive firmware updates remotely via the app. This ensures the battery management system (BMS) is always running the latest software, which can improve performance, security, and features over time.

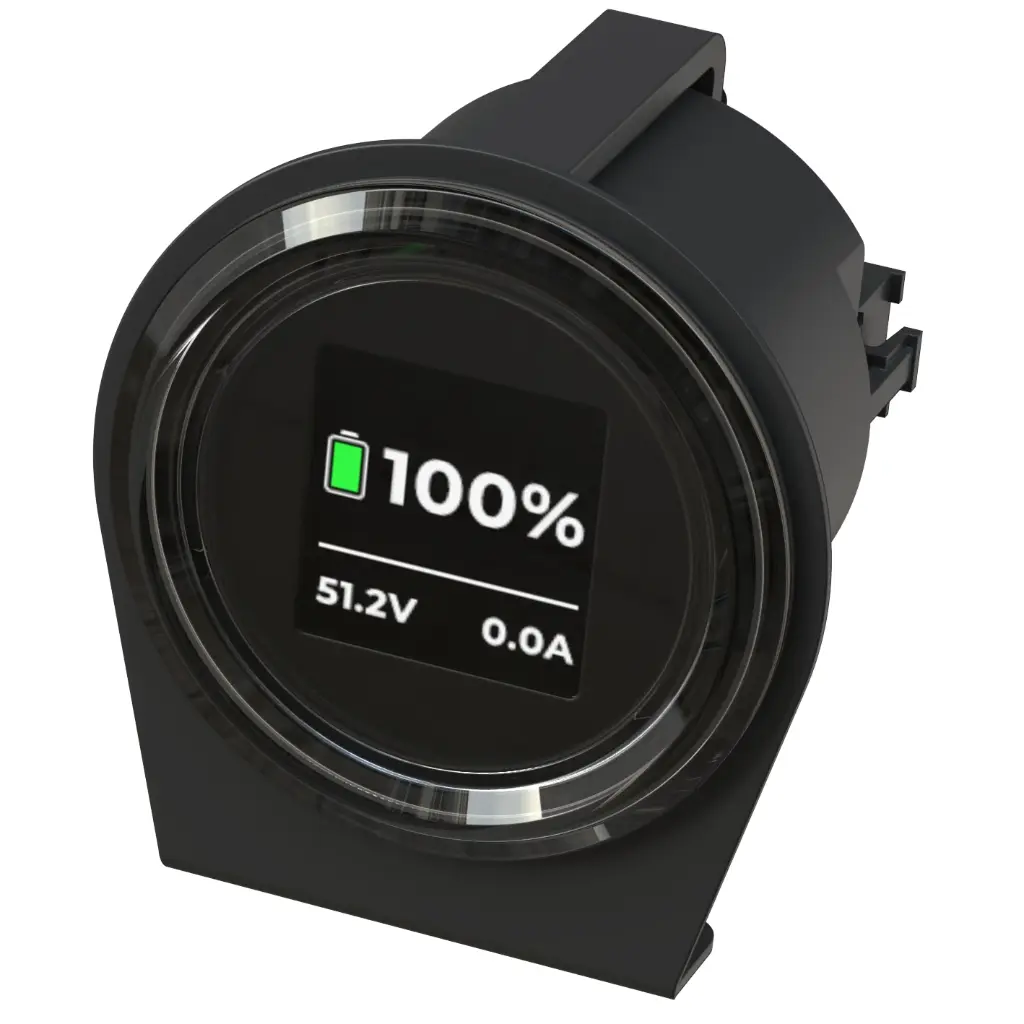

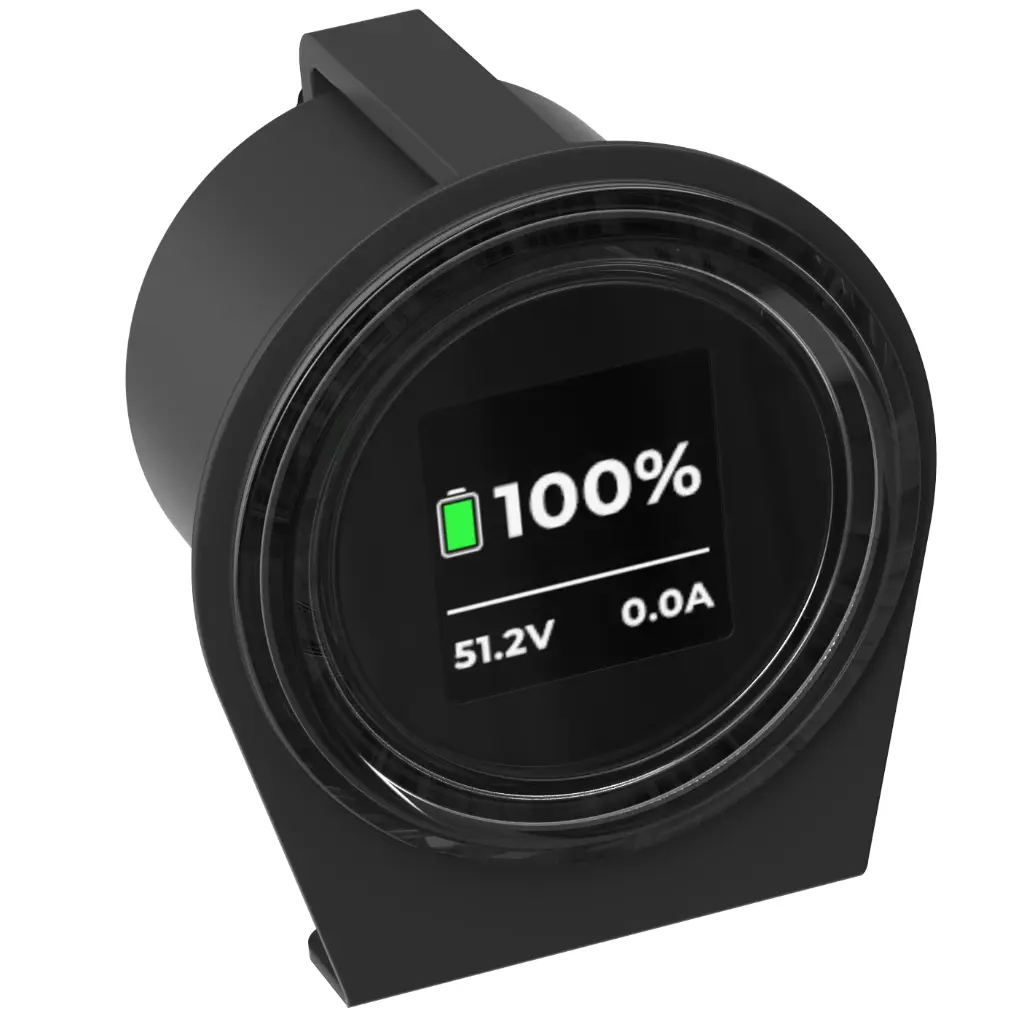

• Upgraded Battery Gauge: Better Monitoring: The new battery gauge provides more detailed information, including State of Charge (SOC), voltage, current flow, and alarm alerts. This is a significant improvement over the older version, which only had a 10-segment gauge. The added details help with better monitoring of the system's health and performance.
