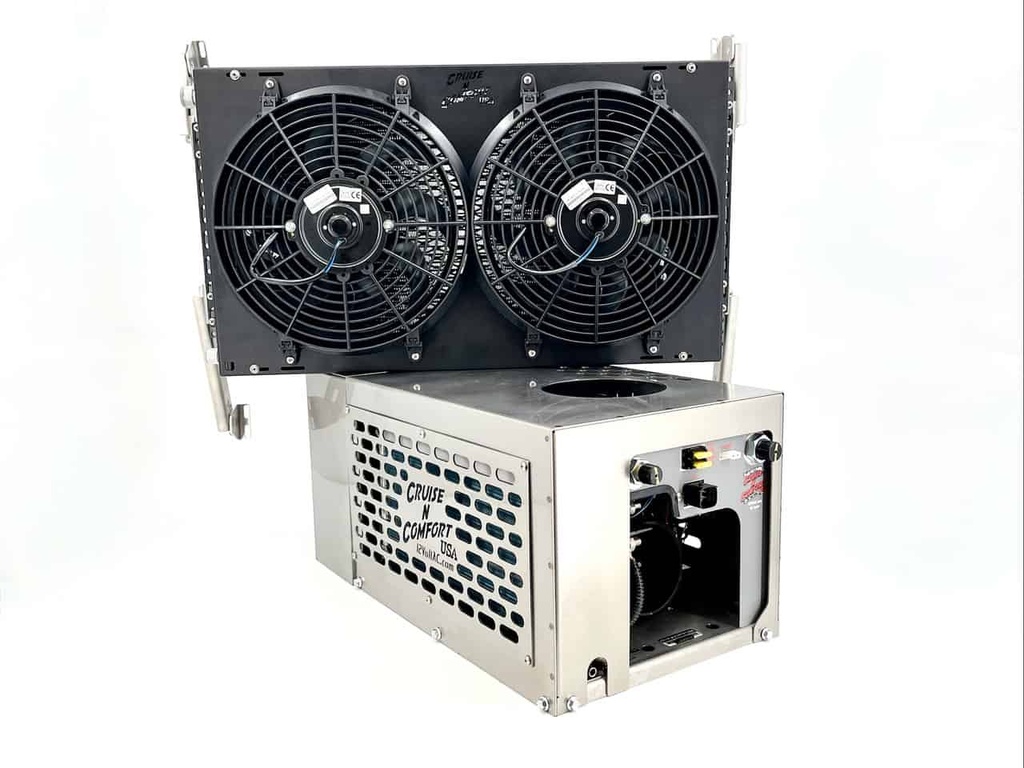

The Cruise N Comfort USA HD-48L is a 48 Volt DC split system air conditioner that is designed for use in harsh environments and operate directly from batteries. These units use a external remote condenser that mounts to the outside of the area to be cooled. These units will need to be evacuated and charged with automotive R134a refrigerant and are fitted with R134a automotive style service ports to make charging and servicing easy. The HD-48L system is a great alternative to retro fitting engine mounted compressors and is a great no-idle solution. The HD-48L utilizes almost entirely stainless steel construction, polyester enamel coated evaporator and our American Made long life DC Compressor. All specifications and images listed on this sheet are approximate and subject to change. Made In The USA!!
Please note: This unit requires freight shipping and has been included in the price.
Features:
*48 volt system will be upgraded to a 2 fan condenser that will require the 2 fans to be wired in series.
HD-48L Specifications:
Cool only
BTU: 11,000
Input Voltage: 48 Volts DC
Below shows our power consumption with our optional thermostat that utilizes our always active Cruise Mode
8-16 amps @48 VDC
Blower duct size: 4”
Evaporator Size: L 22” x W 12” x H 10.5”
Condenser Size :14.68" tall x 26.38" wide x 4.94"thick
Evaporator weight approximately 65 Lbs.
