Hoymiles DTS-4G-G1 Data Transfer Stick

https://www.offgridps.com/web/image/product.template/12502/image_1920?unique=2fdaa12

150.00 150.0 USD 150.00

150.00

Not Available For Sale

  • Brand

This combination does not exist.

Brand: Hoymiles

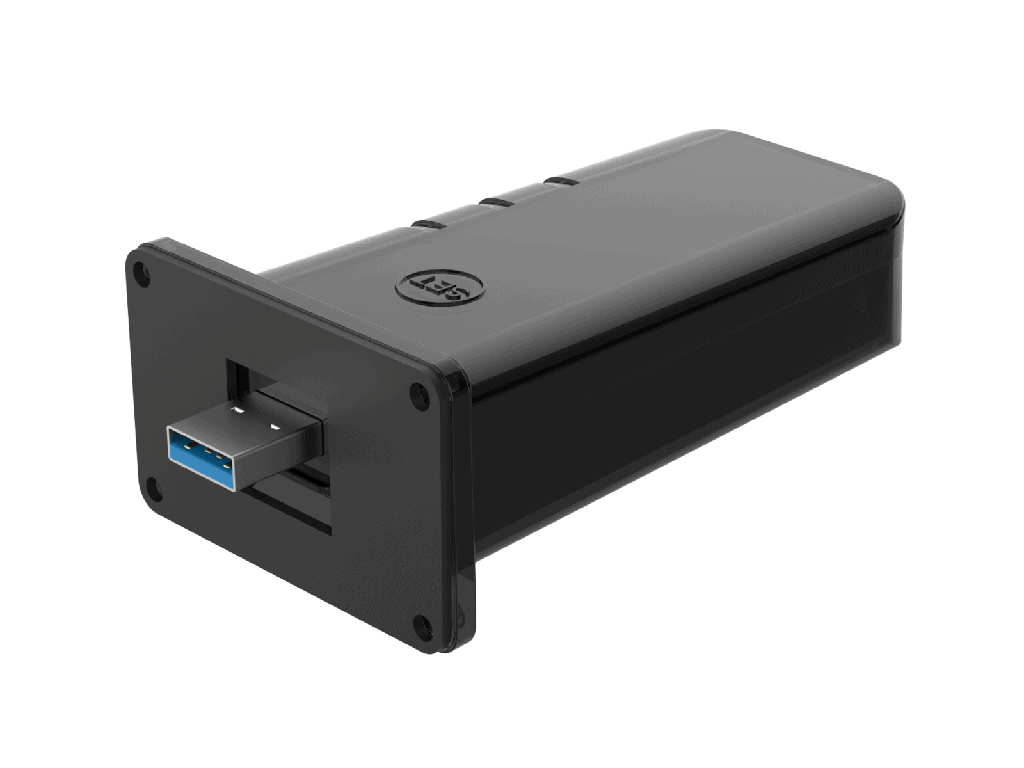

Hoymiles DTS-4G-G1 Data Transfer Stick

Hoymiles gateway DTS series are data transfer sticks that work between inverters and S-Miles Cloud platform via Wi-Fi, Ethernet or 4G communication. The DTS is designed as a suitable option for the energy storage system.Hoymiles DTS is small and easy to install. It pairs with the S-Miles Cloud platform to enable real-time system data or alarm monitoring and allows remote operation and maintenance of the storage energy system from anywhere. Features

  • Integrated to use, simply plug and play
  • IP65 protection
  • Stable and reliable data transmission
  • Remote maintenance of energy storage system on S-Miles Cloud platform

Communication

  • Max. Inverter: Supported 10
  • Sample Rate: 15 minutes
  • Indicator: LED
  • Connection Interface: USB
  • 4G Standard & Frequency Range
    • 4G: LTE-FDD / LTE-TDD
    • 3G: WCDMA / HSDPA / HSUPA / HSPA+
    • 2G: GSM / GPRS / EDGE
  • Configuration Method: App / Web

General

  • Operating Voltage: DC 5 V
  • Power Consumption: ≤ 5 W
  • Dimensions: (W × H × D) 108 × 57 × 36 mm (4.3 × 2.2 × 1.4 inch)
  • Weight: 80 g (0.18 lb)
  • Protection Degree: IP65
  • Installation Method: Insert + Screw

Environment

  • Operating Temperature Range: -25℃ to 65℃ (-13℉ to 149℉)
  • Relative Humidity: 0-95%, no condensing
  • Operating Altitude: ≤ 4000 m
