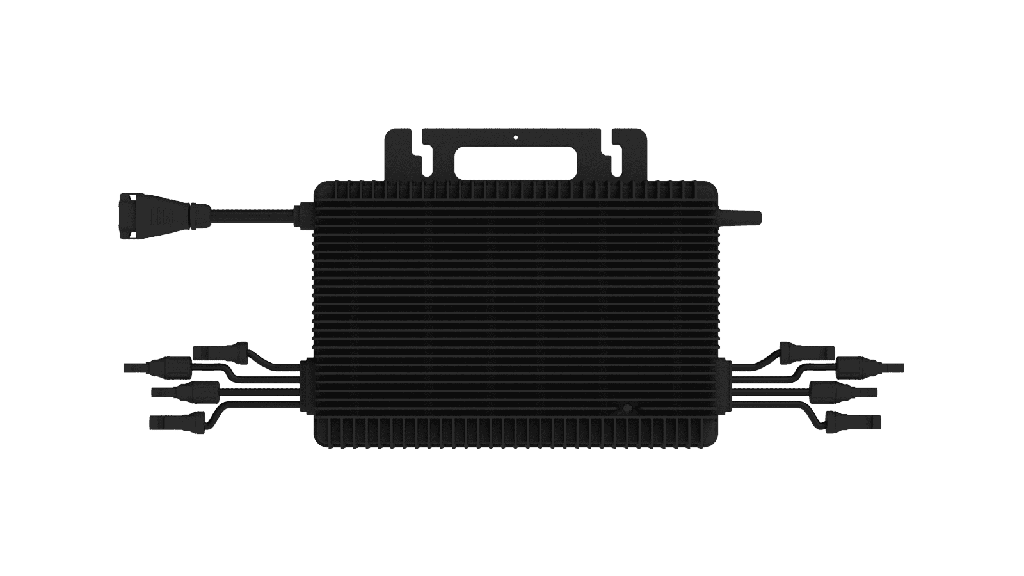

Hoymiles HMS-2000-4T-NA Microinverter

Hoymiles HMS-450-1T-NA Microinverter

Hoymiles new microinverter HMS-2000 series are suitable for high-powered solar panels, which rank among the highest for 4-in-1 microinverters. Each microinverter can be connected to up to four panels and used in various applications, making it one of the most flexible solar solutions. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

Features:

• Reactive Power Control CA Rule 21 Compliant
• Compliant with U.S. NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218
• High-powered micro-inverter with output power up to 2000 VA
• Independent MPPT and monitoring ensure greater energy harvest and easier maintenance
• With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
• Safer for rooftop solar stations with rapid shutdown compliance
• Sub-1G wireless solution allows stable communication in commercial and industrial settings

Input Data(DC):

• Number of PV inputs: 4
• Module Power range, typical(W): 400-670+
• Maximum input voltage (V): 65
• MPPT voltage range (V): 16-60
• Maximum input current (A): 4 x 16

Output Data(AC):

• Peak output power (VA): 2000
• Maximum continuous output power (VA): 1918
• Maximum continuous output current (A): 7.99 | 9.22
• Nominal output voltage(V): 240 | 208
• Nominal output voltage range1(V): 240/211-264 | 208/183-228
• Nominal frequency/range1 (Hz): 60 / 55-65
• Maximum units per branch (10 AWG) 2

Mechanical Data:

• Dimensions (WxHxD) mm: 331 x 218 x 40.6
• Weight: 5.56 kg
• Cooling: Natural convection - no fans
• Enclosure: Outdoor-IP67 NEMA 6
