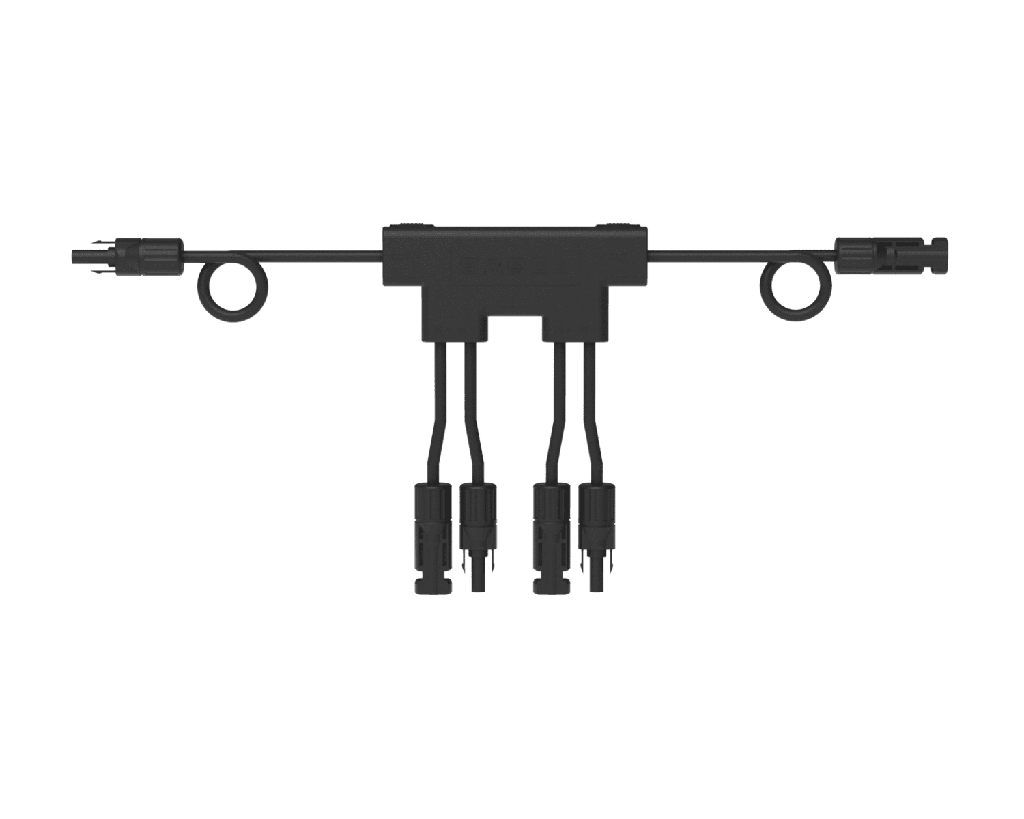

Hoymiles HRSD-2C Rapid Shutdown Module
As part of Hoymiles rapid shutdown solution for the PV system, HRSD-2C can be connected with two modules. It meets NEC 2017, NEC 2020, UL 1741 and SunSpec Rapid Shutdown requirements, guaranteeing PV system safety.
When installed with and receiving a “permission to operate” signal from Hoymiles Transmitter, HRSD starts proper operation of the PV system. In case of emergency, the PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of the Transmitter or using an external initiator.
Features
- Module-level rapid shutdown
- Easy Installation
- Plug & play, no configuration required
- High Efficiency
- Lower power consumption and wider operating voltage range
- PLC communication
Realize rapid shutdown with Transmitter
- Lower Noise
- Much lower than arc noise. No risk of triggering AFCI
Electrical
- Input Voltage Range: 8-80V
- Output Voltage Range: 16-160V (8-80V per input)
- Maximum Current 15A (20A or 25A optional)
- Maximum System Voltage: 1000V (1500V optional)
- Communication Type: SunSpec PLC
- Shutdown Output Voltage: 1V
- Power Consumption 200mW
Mechanical
- Input Connectors: MC4 (standard)
- Input Cable Length: 0.45m
- Output Connectors: MC4 (standard)
- Output Cable Length: 2.4m
- Dimensions 133 x 58 x 16mm
Environmental
- Operating Temperature Range-40°C to +85°C (-40°F to +185°F)
- Outdoor Rating IP68/NEMA6P
