Hoymiles H10 Rapid Shutdown Transmitter

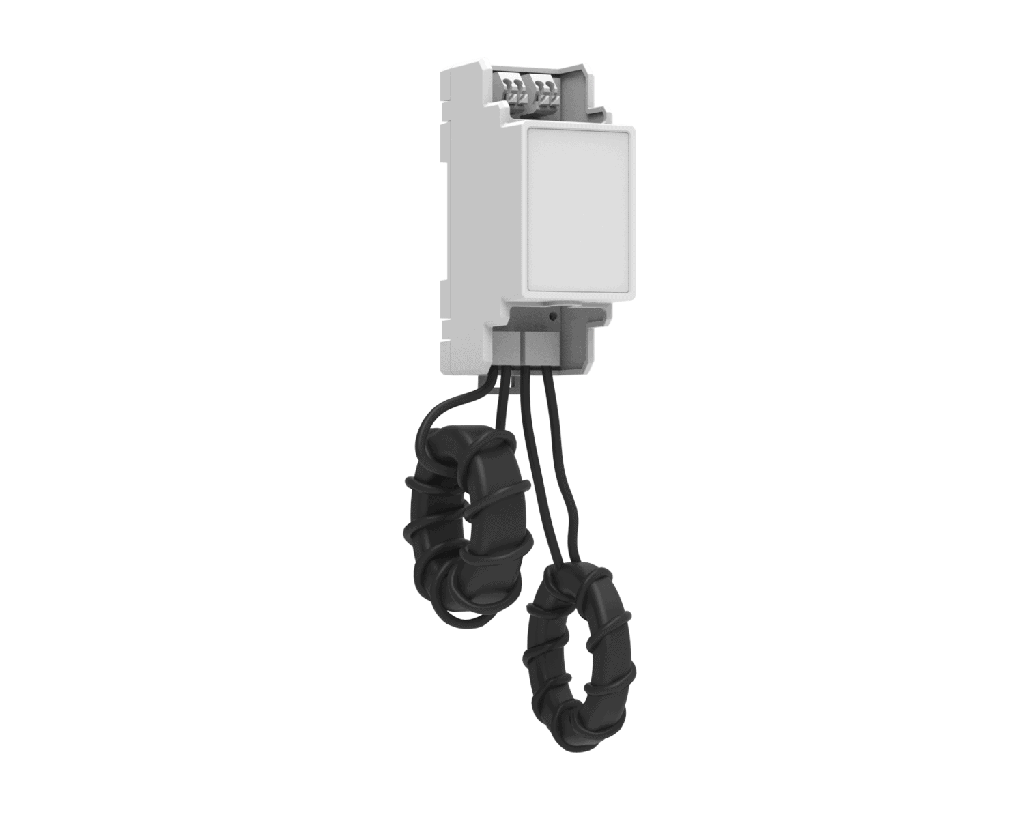

The Transmitter HT10 is part of Hoymiles Rapid Shutdown solution. When paired with Hoymiles rapid shutdown HRSD and powered on, HT10 sends a “permission to operate” signal to HRSD, to make PV modules connected in series and then connect to a string inverter, thus producing power.
In case of emergency, the PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of the Transmitter or using an external initiator.
Features
- Equipped with one / two cores
- Realize rapid shutdown by simply powering off the transmitter or using an external initiator
Electrical
- Transmitter Input Voltage: 12VDC (+/-2%)
- Transmitter Input Current: 1A
- Communication Type: SunSpec PLC
Core
Number of Configure Core | 1 | 1 | 2 | ||||||
Max. Current per Core | 75 A | 150 A | 150 A | ||||||
DC Cable Diameter | Φ 6 mm | Φ 6.45 mm | Φ 7 mm | Φ 6 mm | Φ 6.45 mm | Φ 7 mm | Φ 6 mm | Φ 6.45 mm | Φ 7 mm |
Max. Number of Strings per Core | 5 | 4 | 3 | 15 | 12 | 10 | 15 | 12 | 10 |
Mechanical
- Dimensions: 93 x 36.5 x 53 mm (3.66 x 1.44 x 2.09 inch)
- Mounting Type: DIN35 Rail
Environmental
- Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Outdoor Rating: IP30 / NEMA1
