Hoymiles H10 Rapid Shutdown Transmitter

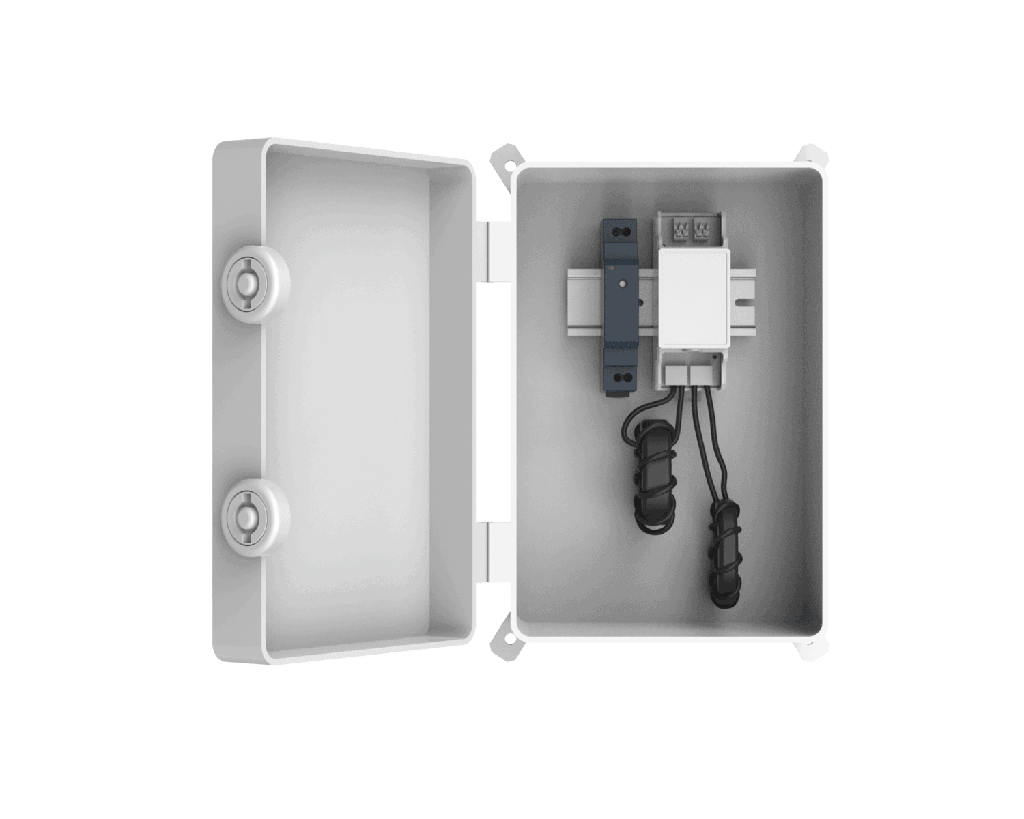

Hoymiles H10-Kit is part of a rapid shutdown solution when paired with Hoymiles rapid shutdown HRSD. While powered on, HT10-Kit sends a “permission to operate” signal to HRSD to keep the PV modules connected in series to the string inverter and producing power. PV system equipped with HRSD and HT10-Kit enters modulelevel rapid shutdown by simply disconnecting the AC power of the Transmitter during emergencies. Hoymiles Transmitter Outdoor Kit includes one Transmitter, one or two cores, 85~264V power supply and outdoor enclosure.
Features
- Equipped with one / two cores
- Realize rapid shutdown by simply powering off the transmitter or using an external initiator
Electrical
- Electrical Power Supply Input Voltage: 85-264VAC
- Transmitter Input Voltage: 12VDC (+/-2%)
- Transmitter Input Current: 1A
- Communication Type: SunSpec PLC
Max. Number of Configure Core 2
Max. Current per Core 75A 150A
DC Cable Diameter 1500VDC
Max. Number of Strings per Core 5 15
Mechanical
- Dimensions: 198.5 x 298 x 179 mm
- Mounting Type: Wall Mounted
Environmental
- Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Outdoor Rating IP65 / NEMA4
