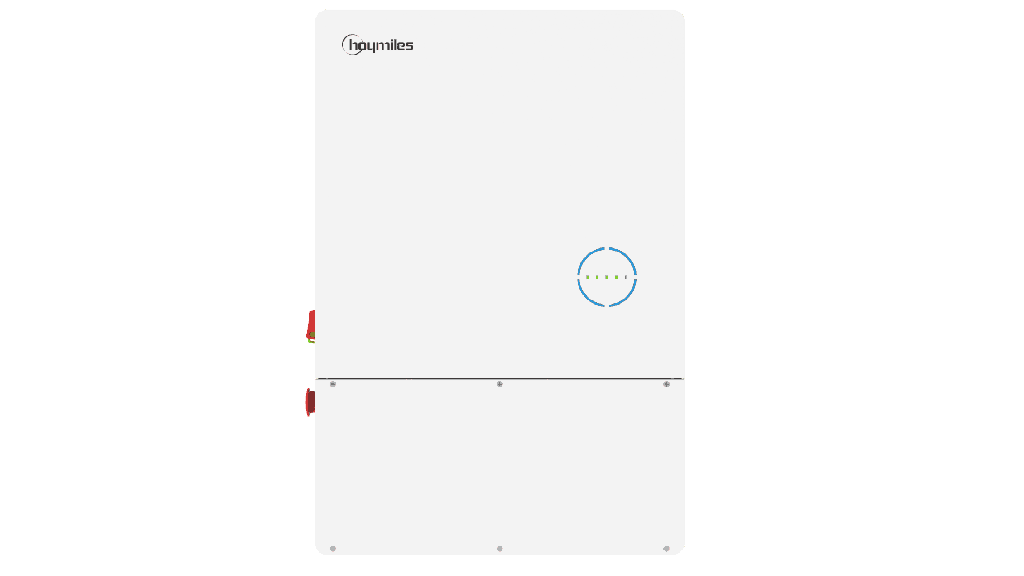

Hoymiles HYS-9.6LV-USG1 Hybrid Solar Inverter
It’s time to break free from power outages—no more interruptions to your favorite football match. Say goodbye to a hot, long summer with an unreliable air conditioner.
True energy independence means power you can count on – day, night, and even in extreme weather. Hoymiles hybrid solar inverters（including single-phase hybrid inverters and 3-phase hybrid inverters）put unparalleled reliability at your fingertips with multiple power sources and storage in one seamless, always-available setup.
Find the best hybrid inverter to start your energy independence journey right now!
Description
The HYS-LV-USG1 Series is a high-performance single-phase hybrid inverter with excellent reliability, including power classes ranging from 3.8 kW to 11.5 kW. It can support up to 10 inverters in parallel with a maximum power of 115 kW.
The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual system's performance over time, maximizing the total solar power production and battery utilization.
Features:
- Max. Efficiency 97.6%, CEC Efficiency 97.0%
- Double MPPT tracker, up to 32A MPPT current
- DC/AC ratio up to 150%
- Ultralight for easy installation and space-saving
- Support 120/240V backup power without external autotransformer
- Seamless backup power for whole home or critical loads
- Built-in dry contact flexibly set to earth fault alarm, load control or generator control
- Integrated arc fault protection and rapid shutdown function
Battery:
- Battery Type: Li-ion / Lead-acid
- Nominal Battery Voltage (V): 48
- Voltage Range (V): 40-60
- Max. Charge Current (A): 200
- Max. Discharge Current (A): 200
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Charging Curve: 3 Stages / Equalization
- External Temperature Sensor: Optional
PV Input:
- Max. PV Input Power (W): 14400
- Max. PV Input Voltage (V): 550
- Nominal Input Voltage (V): 380
- MPPT Voltage Range (V): 125-500
- Number of MPPTs: 2
- Max. Number of PV String per MPPT: 4
- Max. PV Input Current (A): 32/32
- Short-circuit Current of PV Input (A): 40/40
AC Input and Output (On-grid):
- Nominal Output Power (W): 9600
- Max. Output Apparent Power (VA): 9600
- Max. Input Power (W): 19200
- Nominal AC Voltage (V): 240
- Nominal Grid Frequency (Hz): 60
- Max. Output Current (A): 48
- Max. Input Current (A): 80
AC Output (Off-grid):
- Max. Output Apparent Power (VA): 9600
- Peak Output Apparent Power (VA): 19200, 10s
- Nominal AC Voltage (V): 120 / 240 (split phase)
- Nominal AC Frequency (Hz): 60
- Max. Continuous Output Current (A): 40
Mechanical Data:
- Dimensions (WxHxD)inches: 19.8 ×29.1 ×7.95 inch
- Weight: 90.4 lbs (41 kg)
- Mounting: Wall Mounting
- Operation Temperature (℉): -13 to +149 (> 113, derating)
- Communication with BMS: RS485, CAN
- Communication with Meter: RS485
- Communication Interface: RS485, Wi-Fi/Ethernet/4G (optional)
- Cooling: Natural convection
- Max Parallel: 10
Warranty:
- 10 Year Warranty
