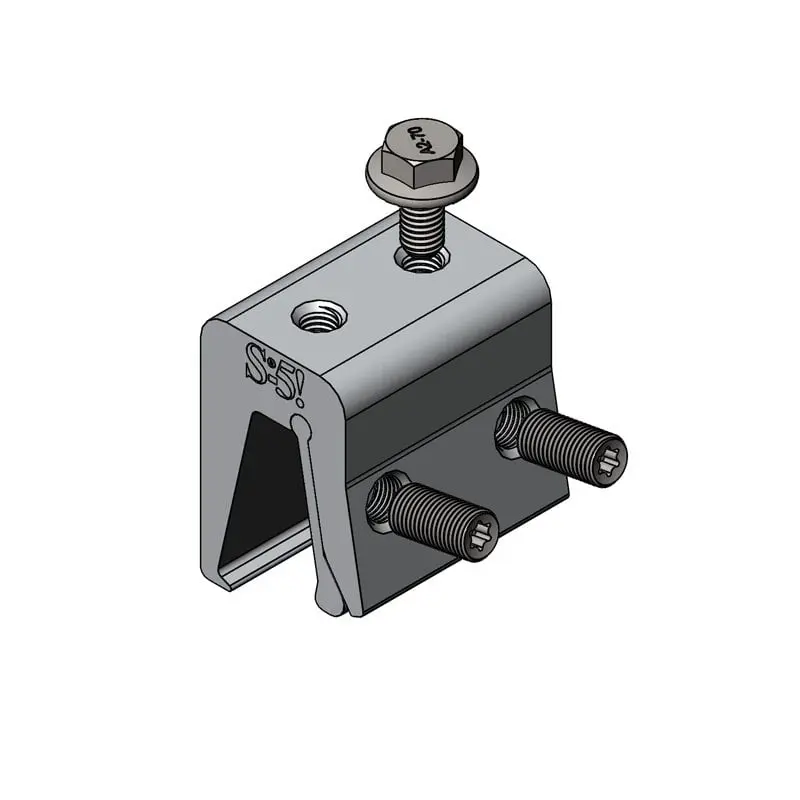

S-5! S-5-NH 1.5 Standing Seam Metal Roof Clamp
Designed specifically for 1-1/2” nail strip profiles with a wider horizontal dimension (> 0.475” and ≤ 0.800”), the S-5-NH 1.5 (“NH” stands for nail strip hinge) is an ideal mounting solution for VicWest Prestige, NewTech FF150 and similarly dimensioned profiles.
The innovative insert is a “hinge” design and features a toe to engage the female portion of the panel. It forms to the shape of the seam, preventing damage at the point of attachment, while offering you optimal holding strength. The hinge insert is also reversible to allow for proper fit on both wide and medium-width profiles.
For ease of installation, the T-30 Torx setscrews are angled upward to facilitate tool insertion. The hinged insert is also staked at one end to facilitate installation.
