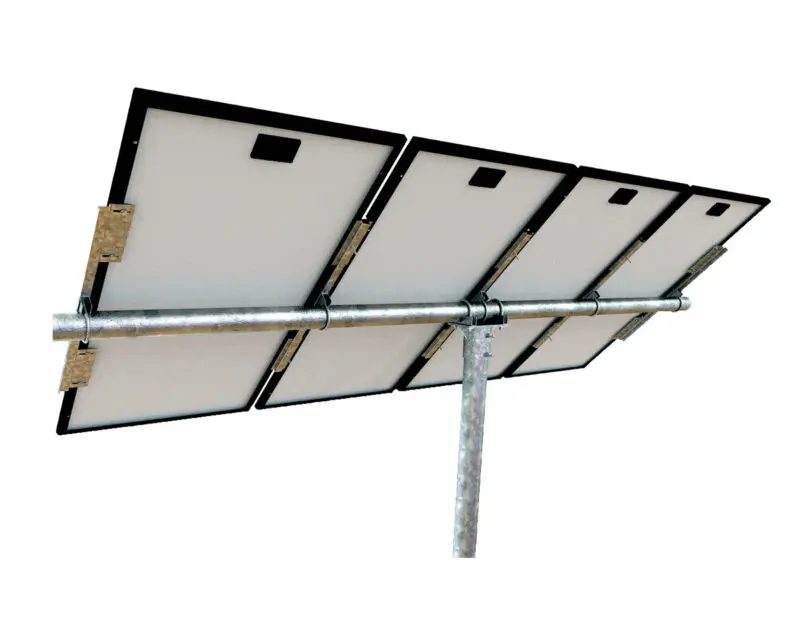

Tamarack Horizontal Pole Mount for (4) modules 72"-96" long, 1 pole

UNI-PGRM/4P1-47 FOUR MODULE POLE MOUNT (for modules 72”- 96” long)

• Mount four solar modules with a total area of 100 sq-ft and a frame thickness between 1.18 and 2 inches*

• Suitable for wind speed up to 150 MPH and snow load up to 20 PSF on one 4-inch pole and up to 100 PSF with two 4-inch poles

• Maximum post height of 6-feet above ground • Tilt angle from 10° to 60°

• Ships via UPS

• Simple one-person installation and adjustment

User supplies: Vertical pole - 4-inch steel pipe (4.5-inch OD) Horizontal beam - 3-inch steel pipe (3.5-inch OD) See table below to determine pipe requirements. See engineering memo for pier diameter and depth. Depths range from 5 to 10 feet with diameters of 18-inches or 24-inches. 3-inch horizontal beam must be a minimum of 8-inches wider than 4-times the solar module width*. Solar Products Tamarack Sol 70-0300-PGM-B

Some wind speeds and snow loads require two vertical poles** and/or Sch-80 horizontal/vertical pipe. If an additional vertical pole is required, order a 70-0300-PGM-B Pole Cap. Refer to spec sheet for additional evaluation.

* Larger modules can be mounted with reduced wind and snow load

**Vertical and Horizontal Pipe is not included
