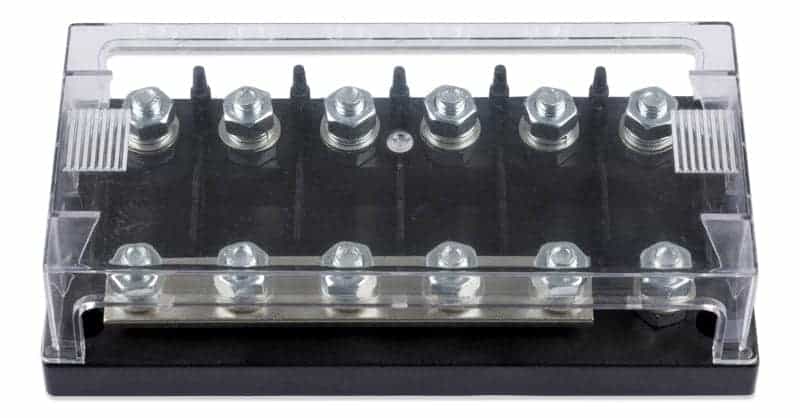

Fuse holder 6-way for MEGA fuse
250 A
Max. current
70 VDC
Max. Voltage
5/16 inch / 8 mm
Terminal diameter
0.67 inch / 14 mm
Terminal height
Galvanised steel
Terminal material
Hex nut material
60 lbf·inch / 7 N·m
Recommended torque
Tin-plated copper (3 x 18 mm)
Busbar strip material
ABS, black, UL 94 V-0
Base material
Clear Polycarbonate, UL 94 HB
Cover material
1 lb / 0,45 kg
Weight
2.0 x 7.2 x 3.5 inch 50.9 x 181.5 x 88 mm
Dimensions (hxwxd) (with cover)
