Pytes Battery - V5° 48V 100Ah

https://www.offgridps.com/web/image/product.template/12336/image_1920?unique=a49c109

$ 1,650.00 1650.0 USD $ 1,650.00

$ 1,650.00

Not Available For Sale

  • Brand
  • Battery Voltage
  • Battery Capacity

This combination does not exist.

Contact Us
Brand: Pytes
Battery Voltage: 48V
Battery Capacity: 100Ah

Share

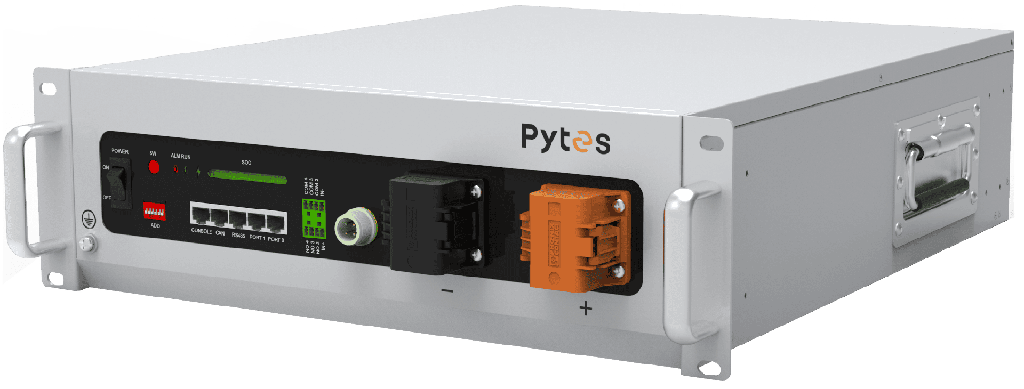

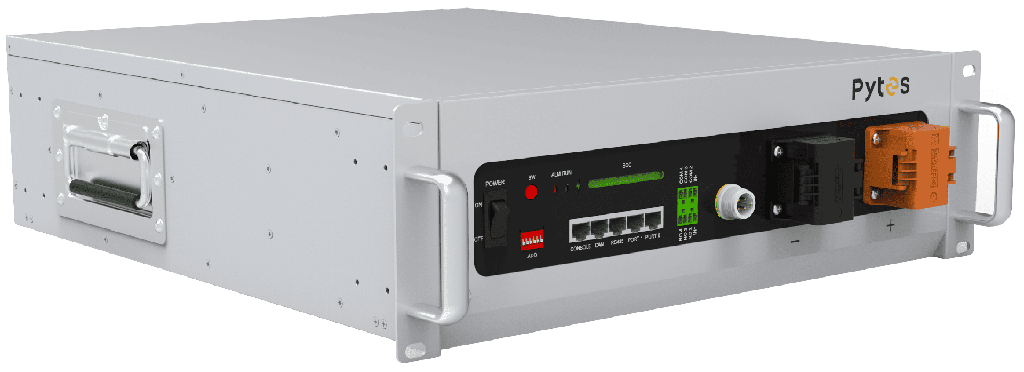

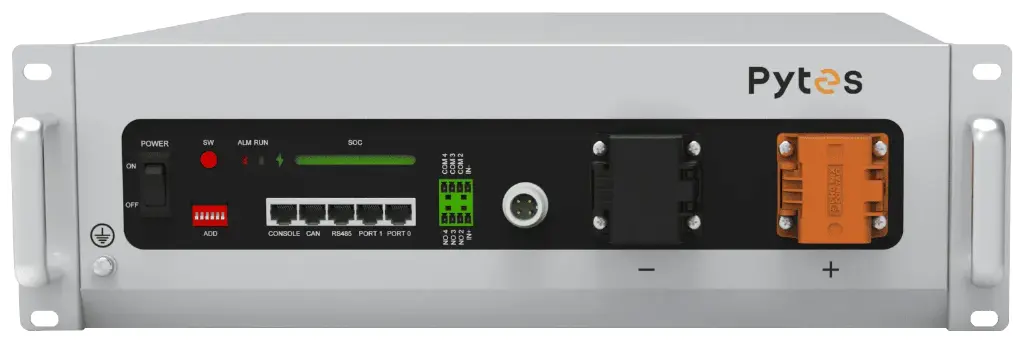

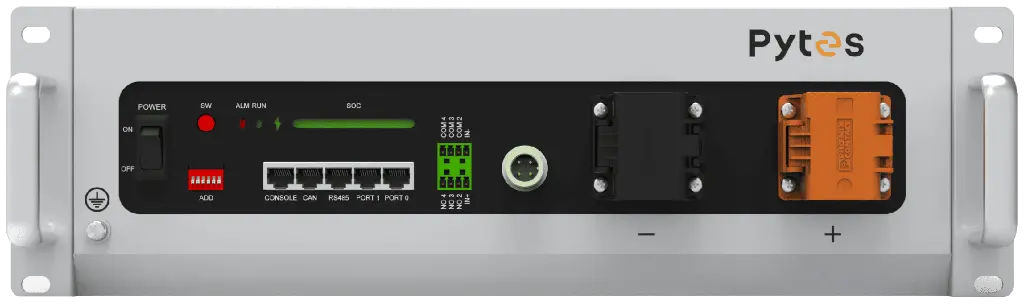

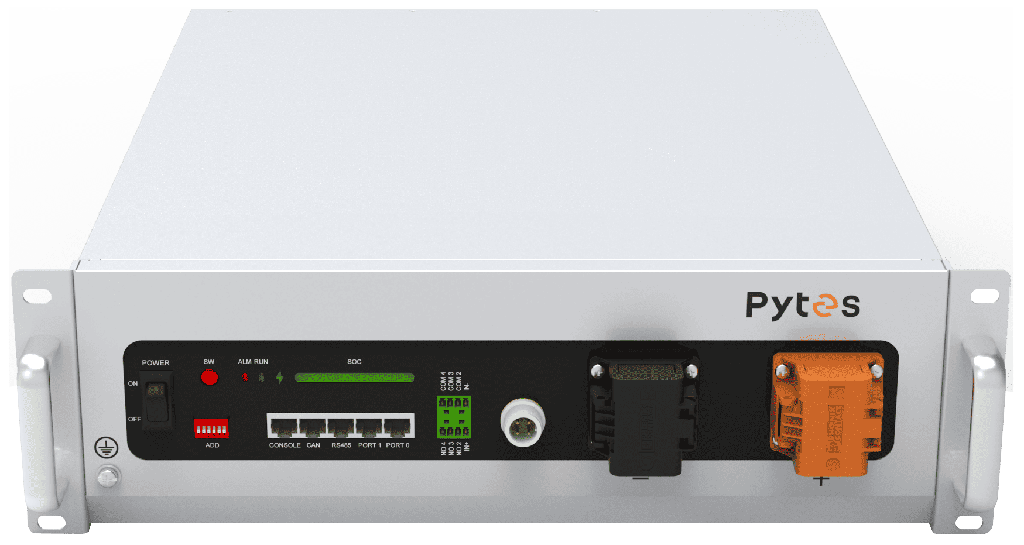

Pytes Battery - V5° 48V 100Ah V5°


The new LFP battery for home energy storage system.

It is an exciting advancement in residential solar energy technology. By storing excess energy, homeowners can enjoy cost savings, energy independence, and a smaller environmental footprint. Additionally, these systems offer smart monitoring and control features that empower homeowners to optimize their energy usage. If you are ready to embrace efficiency and sustainability, consider integrating a home battery system into your home's energy infrastructure. Take control of your power supply and contribute to a greener future starting today.





High PerformanceMaximum 100A charging/discharging (2 cycles)
75A continuous charging/discharging



Self HeatingAuto start heating in cold environments to ensure normal use and battery life



Compact Cell SystemIt reduces the space occupation and weight of the wiring system, also eliminates the wiring errors and improves the safety and reliability



Remote UpgradeA data acquisition stick is optional, enabling remote firmware upgrades




Scalable for DemandExpandable up to 573kWh (with a hub)
Max support 16 units parallel connection in one group


Wide CompatibilityCompatible with most inverter brands on the market



CertificationsUL9540, UL1973, UL9540A, CEC, SGIP, UN38.3, IEC62619, CE



Long-lasting and Efficient≥6000 cycles @90%DOD>95% Round-trip efficiency

10 years warranty, Up to 20 years design life
Product Liability Insurance for North and Latin America



Battery ModelV5°
ChemistryLFP
Nominal Voltage51.2V
Voltage Range44.8V-57.6V
Nominal Capacity100Ah
Nominal Energy5.12kWh
Unit Dimension17.32*20.87*5.51 inch
Standard Charge/Discharge75A
Maximum Continuous Charge/Discharge100A
Peak Charge/Discharge150A(15s)
Round-Trip Efficiency≥95%
Communication ProtocolCAN/RS485
Cycle Life≥6000cycles
Calendar Life≥10years
Operating Temperature14°F ~ 131°F
Connect styleParallel
Heating system46.4~50°F/h
Add-on Functionalities
WIFI ConnectionRemote monitoring and upgrade
Heating PadTemperature Rise: 18F/h
Scalability14 pcs (71.68kWh)in a group
6 groups (430.08kWh) in a system w/a Hub
