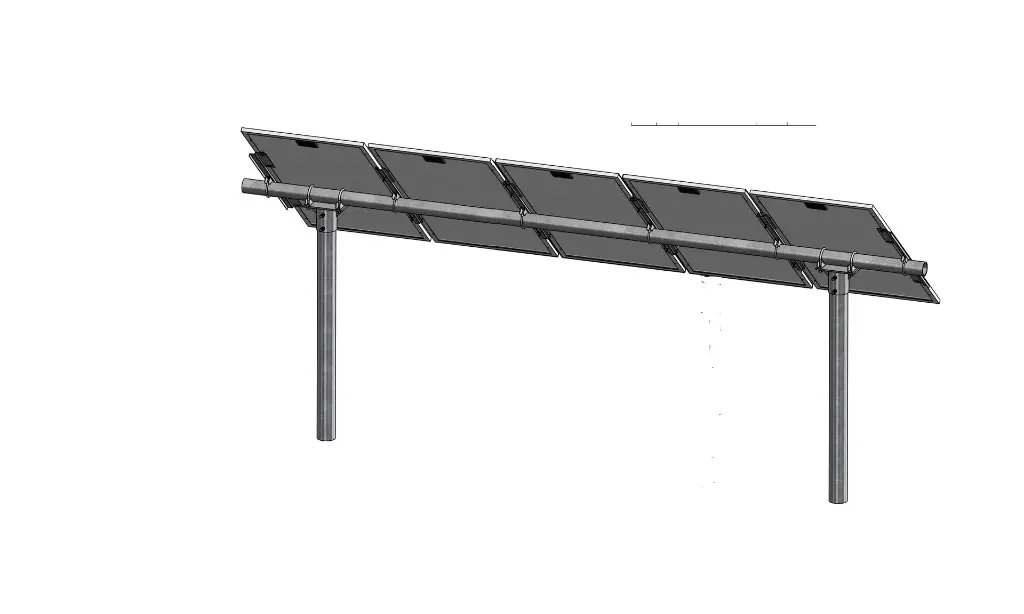

Tamarack Horizontal Pole Mount for (5) modules 38"-72" long, 2 poles

UNI-PGRM/5P2 FIVE MODULE POLE MOUNT

• Mount five solar modules with a total area of 125 sq-ft and a frame thickness between 1.18 and 2 inches*

• Suitable for wind speed up to 150 MPH and snow load up to 100 PSF

• Max post height of 6-feet above ground

• Tilt angle from 10° to 60°

• Ships via UPS

• Simple one-person installation and adjustment

Some wind speeds and snow loads require three vertical poles or Sch-80 vertical poles. If an additional vertical pole is required order a 70-0300-PGM-B Pole Cap.

User supplies: Vertical pole - two 4-inch steel pipes (4.5-inch OD) Horizontal beam - 3-inch steel pipe (3.5-inch OD)
